Viz Vectar User Guide
Version 1.0 | Published May 07, 2020 ©
Switcher Row Banks

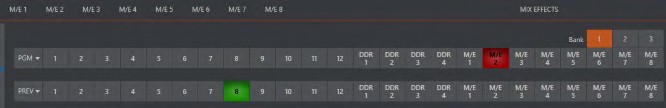

In standard Switcher mode, two Switcher rows labeled PGM (Program) and PREV (Preview) are shown. Clicking a button in the Program or Preview row selects the active video source for that bus (note that Audio sources can optionally be affected by Switcher activity).
Viz Vectar’s Program and Preview rows represent all available video source in banks of buttons. The number of banks vary according to the number of sources each model supports.
Bank 1 is shown by default. Holding down ALT on the keyboard reveals Bank 2. On releasing ALT, Bank 1 is re-displayed. Press ALT + CTRL to momentarily display Bank 3 when supported. It’s possible to latch banks, either by clicking Bank buttons on the screen, or by pressing TAB to cycle the currently displayed bank.
Tip: The standard Switcher (and M/Es with transitions assigned) show selection hint tags beneath their rows when the selected source is in another bank. Click a tag to jump to the bank the source is hosted in.
