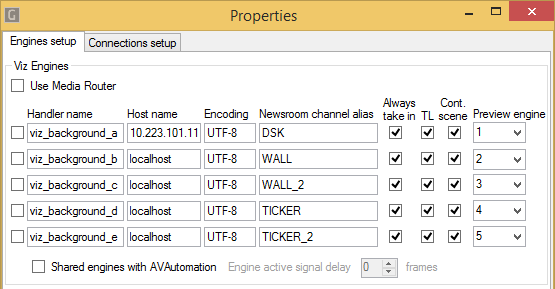

Viz Engines

• Use Media Router: Check for using Media router.

• Viz Engines: Use the check box to activate or deactivate connection to the Viz Engines configured in the corresponding row.

• Handler name: Internal Media Sequencer handler name.

• Host name: IP address or hostname of the Viz Engine.

• Encoding: Font encoding on the Viz Engine. Use UTF-8.

• Newsroom channel alias: Alias to be used from the NCS to direct the lower third or video wall element to the correct engine.

• Shared engines with AVAutomation: Enable the check box if the Trio Interface and the AV Automation are sharing play-out on the engines. If enabled, the Trio Interface will signal the AV Automation when there are no Viz Mosart controlled lower thirds on-air, allowing for any cued full screen graphics controlled through the AV Automation to re-cue. The engine configuration must be the same in both applications.

• Always take in: Check to always force a take-in command to be sent.

• TL: Check to specify that Transition Logic shall be used.

• Cont. scene: Use Continue for takeout of scene based graphics.

• Preview engine: Indicate which Vizrt engine to be used for preview of overlays.

• Shared engines with AVAutomation: This functionality will assume that the graphic configuration in AV Automation is equal to in Viz Trio. Viz Trio will protect the engine from being used by AV Automation when CG is active in Viz Trio.

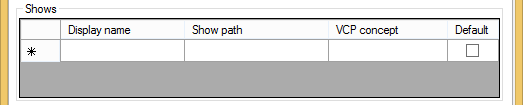

Shows

• Display name: The name of the show that will be shown in the drop down list in the Viz Mosart GUI. Please note that when using Concept Override, this name must be identical to the Viz Pilot concept.

• Show path: Viz Trio path for the show.

• VCP concept: Name of the Viz Pilot concept.

• Default: Enable to make the row the default show for the gallery.

Logic- Transition Logic Configuration

• Use Continue for take out of scene based graphics: Enable check box if all scene based graphics has an out animation that can be triggered with a continue command to the Viz Engine. Disable to force all take outs on scene based graphics to be taken out with a cut.

• Use Transition Logic aware take in/out commands: Check to activate the mode where Viz Mosart reads out the Transition Logic state of all items and keeps track of whether an item replaces another or is played back to back.

• Take out delay: Delay before takeout. Default: Empty (ss:ff)

Playlist

• Use MOS VCP Playlist: Enable the Playlist check box when using Vizrt MOS items from the newsroom system.

• Playlist name: VizPilot Playlist on the Media Sequencer that Viz Mosart will populate with the Vizrt MOS items. *Note: *The playlist name used here cannot be the same as used in AV Automation Devices - Graphics > Vizrt Settings > Miscellaneous > Mos Playlist.

• Use Concept override: Enable this check box if your scenes have been prepared for the Concept Override functionality in Viz Pilot 5.2 and later.

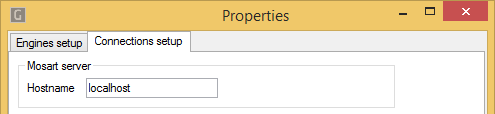

Mosart Server

• Hostname: Hostname or IP address of the computer running the Manus Administrator application. Default: localhost

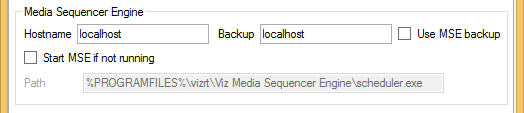

Media Sequencer Engine

• Hostname: Hostname or IP address of the primary Media Sequencer.

• Backup: Hostname or IP address of the backup Media Sequencer.

• Use MSE backup: Check this box to initially start using the backup Media Sequencer instead of the primary.

• Start MSE if not running: If the Media Sequencer is not running when Trio Interface is started, it will try to start from the location described under (only valid if the Media Sequencer is running as a console application on the same machine).

• Path: Path to the scheduler.exe in the Media Sequencer program files folder (only if Media Sequencer is running as a console application on the same machine).

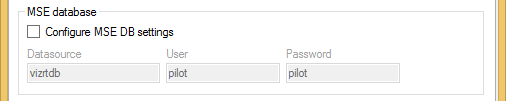

MSE Database

• Configure MSE DB settings: Enable to update the database settings in the Media Sequencer with the details below.

• Datasource: TNS name or connection string of the Oracle database.

• User: Username on the Oracle database.

• Password: Password on the Oracle database.

Logging

• Enable: If enabled, logging details are sent to the logfile.

• Verbose: If enabled, verbose logging is activated (increasing the details sent to the log).
