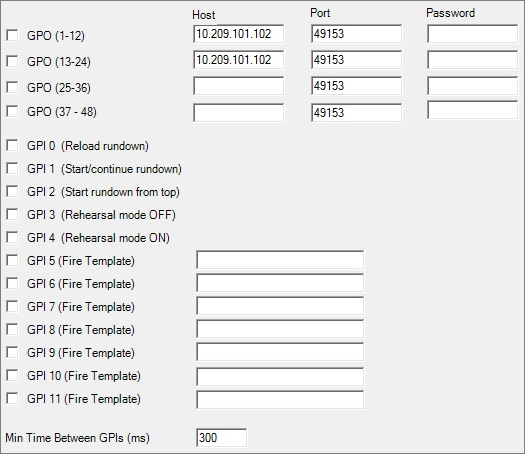

GPO (1-12): Check to enable a WebIO box for the first 12 GPI/O.

GPO (13-24): Check to enable a WebIO box for the second 12 GPI/O.

GPO (25-36): Check to enable a WebIO box for the third 12 GPI/O.

GPO (37-48): Check to enable a WebIO box for the fourth 12 GPI/O.

Host: Hostname or IP address to the WebIO GPI box.

Port: Port to communicate with the HTTP WebIO protocol.

Password: Defines the password, if needed.

GPI 0 (check box): Enable initialize Viz Mosart rundown when external pulse is received.

GPI 1 (check box): Enable start/continue the Viz Mosart timeline from an external pulse.

GPI 2 (check box): Enable starting Viz Mosart rundown on first story on external pulse.

GPI 3 (check box): Enable rehearsal mode off.

GPI 4 (check box): Enable rehearsal mode on.

GPI 5-11 (check boxes/custom): Enable firing of the template or command given in the text box.
