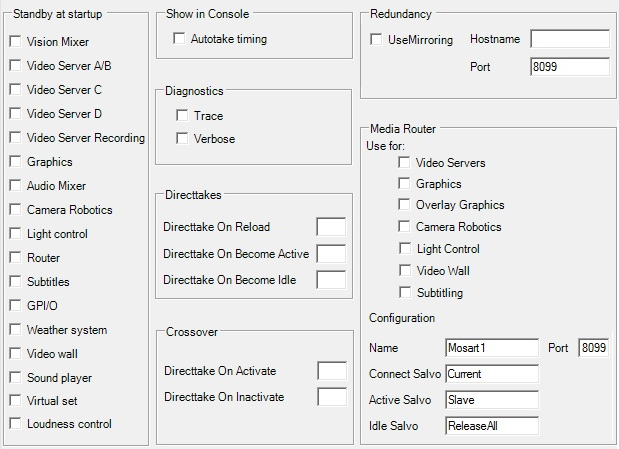

Standby at startup

• Select the drivers to start in standby mode. They must be taken out of standby manually.
  Show in Console

• Autotake timing: Adds timing to the log window. Used for debugging purposes.
  Diagnostics

• Trace: Adds logging information to console used for dbugview.

• Verbose: Increases logging information from AV Automation to the log file.
  Directtakes

• Directtake On Reload: The number of the directtake template to be fired upon re-loading the rundown.

• Directtake On Become Active: The number of the directtake template to be fired when the server becomes active from idle, when switching between main and backup Viz Mosart servers.

• Directtake On Become Idle: The number of the directtake template to be fired when the server becomes idle from active, when switching between main and backup Viz Mosart servers.
  Crossover

• Directtake on Activate: The direct take number to be taken when this server goes active in crossover switch.

• Directtake on Inactivate: The direct take number to be taken when this server goes inactive in crossover switch.
  Redundancy

• UseMirroring: Check to enable mirroring. Upon enabling mirroring on both main and backup server, the settings will be synchronized.

• Hostname: Hostname or IP address of the Backup Server if using Main Server, and vice versa.

• Port: IP port number of the Backup Server if using Main Server, and vice versa.
  Media Router

• Use for: Select which controls should be used by the Media Router.

• Name: Media router’s hostname or IP address.

• Port: Media router’s connection port number.

• Connect Salvo: The salvo name to be taken when this server connects after restart. Default: Current

• Active Salvo: The salvo name to be taken when this server becomes the active server from being idle. Default: Slave

• Idle Salvo: The salvo name to be taken when this server becomes idle after being active. Default: ReleaseAll
