Template Operations

To Add a Template

You can add a new template to the currently selected template set.

  1. Select File > New template.

  2. Enter the new Template Properties.

To Edit a Template

  • Select Edit > Template properties.

Note: Template properties can also be accessed by right-clicking in the device's Function area. See the table Template Properties.

To Remove a Template

  1. Select File > Remove template.

  2. Confirm delete in the dialog box.

To Flatten a Template

You can push a new template, created in another template set (that was created using the hierarchical approach), back to the originating template set.

  1. Select Template > Flatten.

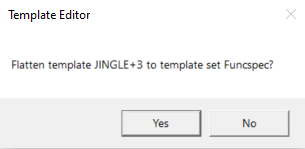

    A dialog box displays which template set the selected template will be flattened to.

  2. Click Yes.

Note: For a description of Hierarchical templates, please refer to Working with Template Sets.

To Copy a Template

You can copy a template from one template set to another template set.

  1. Open the template you want to copy.

  2. Select Edit > Copy template.

  3. Switch to the other template set, and then apply Edit > Paste template.

  4. Select Edit > Paste to all to copy the template to all template sets.
