This chapter is a reference chapter for the user interface. It contains information relevant for the Viz Multichannel client when used in scheduling and master control room (MCR) mode.

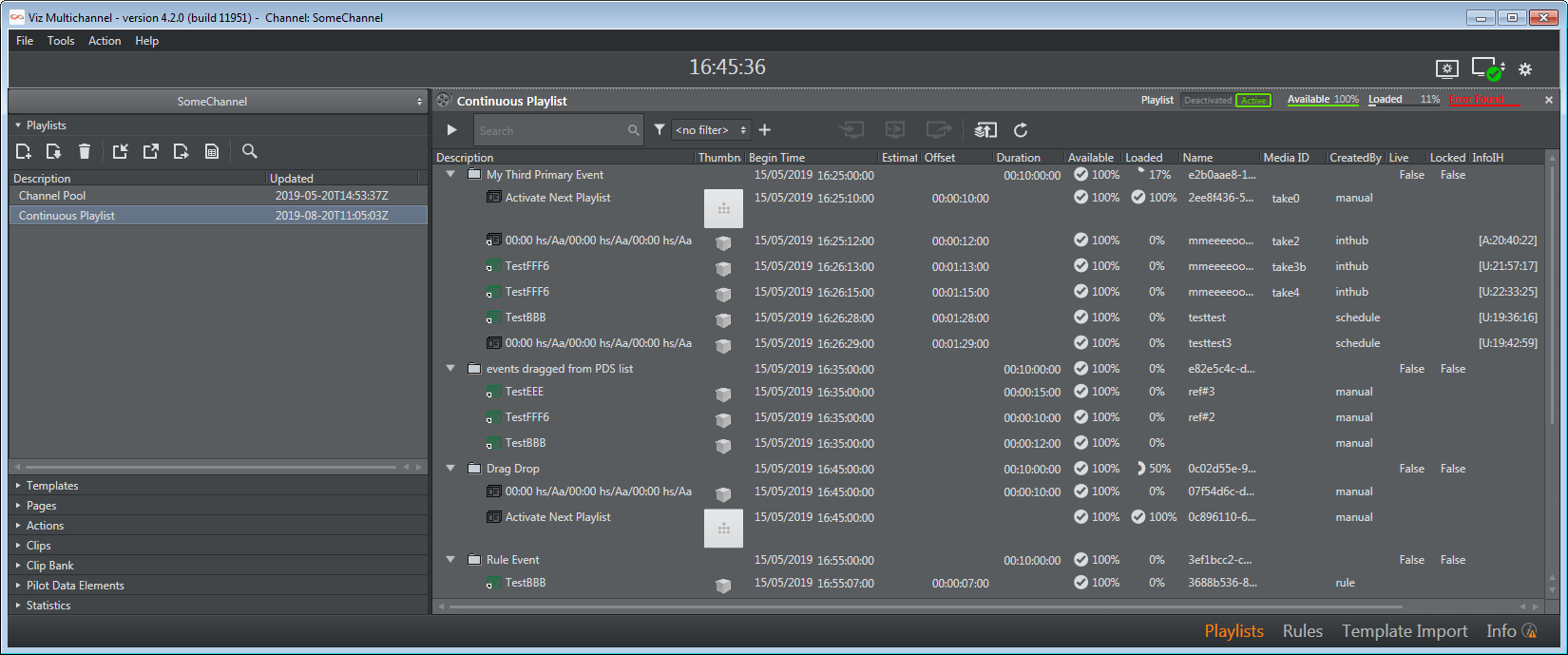

The main window is divided into the following sections:

1. Main menu with options File, Tools, Actions and Help. The toolbar icons can, if required, all be hidden or visible (except the Time, Local Engine Status and Configuration icons that always will be visible) using the Action menu page options.

2. Select panel to work on: Playlists, Templates, Pages, Actions, Clips, Pilot Data Elements or Statistics.

3. Work area for the selected Playlist or Channel Pool.

4. Menu-selector for easy access to Playlists, Rules, Template Import or the Information panel.

This section also contains:

• Main Menu and Toolbar

• Information Panel

• Channels

• Playlists

• Templates, Pages and Pilot Data Elements

• Clips

• Clip Bank

• Actions

• Import Scene

• Rules

• Page Editor

• Timeline Editor

• Combo Page Editor
