Viz Mosart can connect to a variety of audio mixers from several manufacturers.

From the Audio Mixer menu, you select the audio mixer used in your broadcast environment.
AV Automation handles the following:

Audio Mixer

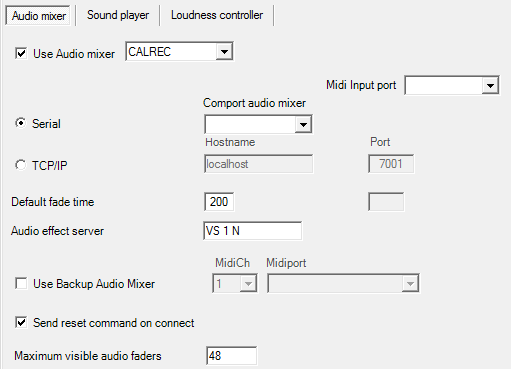

images/download/attachments/76797181/configuration_avauto-audiomix-setup-window.png

  • Use Audio mixer: Enables the audio mixer functionality.

Audio Mixer Types

Audio mixer

Protocol

Supported hardware

Interface

Calrec

RAP

RS-422, TCP/IP (Artemis)

DHD

DHD RM4200-D v2.02

TCP/IP

EUPHONIX

RAP

COM

LAWO RMNOPL

RemoteMNOPL

Lawo mc²

TCP/IP

LAWO ZIRKON

RAS, Lawo Zirkon subset

RS-422 or TCP/IP

MIDIMIXER

Sanford.Multimedia

MIDI

SSL

Light Broadcast Automation protocol, SSL Broadcast Automation Control Specification – v1.0

RS-422 or TCP/IP

STAGETEC

Stagetec Diamond RAS protocol, Monitora RAS

COM

STUDER_3000

Monitora + Ember, Ember 1.0

Studer OnAir 3000

RS-232 or TCP/IP

STUDER_VISTA

Ember

Studer Vista

TCP/IP

VIZENGINE

n/a

Viz Opus only

TCP/IP

WHEATSTONE

Wheatstone Mixer Automation Protocol v.1.4

TCP/IP

YAMAHA_O2

MIDI

Yamaha 01V96, DM1000, DM2000, DME64N, O2V96, LS9, CL5

MIDI

vizrt-ips

NewTek

Vizrt Group/NewTek ip series mixers. TriCaster, VMC, Viz Verdi, Viz Vectar

TCP/IP

  • Serial (Calrec, Lawo, Studer, etc.): Serial port connected to the audio mixer (when Serial radio button is selected).

  • TCP/IP: Hostname (or IP address) and port to communicate with the audio mixer (when TCP/IP radio button is selected). Note that for Calrec it is possible to configure a main and backup audio mixer by specifying two comma separated hostname values and port values.

  • Backup hostname and port (LAWO RMNOPL): Hostname (or IP address) and port to the backup audio mixer console.

  • Set user labels on console: When selected, user labels on the Lawo or Vista console are overwritten.

  • MidiCh (MIDIMIXER and YAMAHA_O2): MIDI channel assigned to the audio mixer.

  • Midi Input port (MIDIMIXER and YAMAHA_O2): System MIDI input port to communicate with the audio mixer.

  • Midi Output port (MIDIMIXER and YAMAHA_O2): System MIDI output port to communicate with the audio mixer.

  • Default fade time: Time in frames for fading open faders with the manual fade function (CTRL+F).

  • Default snapshot: Snapshot to recall when starting the automation (MIDI parameter change).

  • Audio effect server: Name for the Audio effect fader. This fader will open if effect transitions are used.

  • Send reset command on connect: Used for STUDER3000 SW 2.2, or lower. Recalls a default setup for the Mixer panel.

  • Visible audio faders: Maximum visible faders in AV Automation.

  • Use sound player: Enables connection to the Audio Player.

  • Host: Hostname or IP address to the computer running the Audio Player.

  • Default directory: Directory for the audio files (on the Audio Player’s PC).

AV Automation Audio Mixer Availability Table

Serial

TCP/IP

MidiCh

Midiport

Hostname

Port

Backup
host name

Backup
Port

Faderinput
offset

Useember
protocol

Comport
audiomixer

CALREC

x

x

x

x

x

DHD

x

x

x

EUPHONIX

x

x

LAWO
RMNOPL

x

x

x

x

x

LAWO
ZIRKON

x

x

x

x

x

MIDI
MIXER

x

x

SSL

x

x

x

STAGETEC

x

x

x

x

x

STUDER
3000

x

x

x

x

x

x

STUDER
VISTA

x

x

x

VIZ
ENGINE

x

x

x

WHEAT
STONE

x

x

x

YAMAHA
O2

x

x

Vizrt
ips

x

x

x

Loudness Control

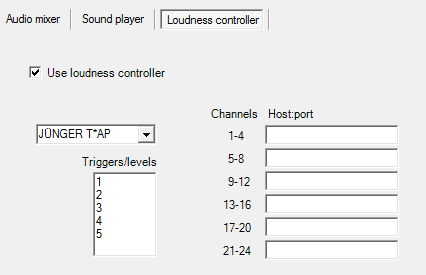

images/download/attachments/76797181/configuration_avauto-loudness.png

  • Use loudness controller: Check the box to enable loudness control.

  • Loudness controller type: JUNGER T*AP.

  • Triggers/levels: Name of triggers or loudness levels, one for each line. These will appear in a tool-tip menu in the Template editor, and must correspond to the configuration in the loudness controller(s).

  • Channels: Fixed values. For Junger T*AP there are four stereo channels per host. Connections to the audio faders are configured in A/V Setup/Edit/Audio config/Loudness channel.

  • Host:port: Hostname or IP address and optional port number for each controller.

Note: If the root node name is different than T*AP the name must be set in the AVA configuration property JungerRoot .
