Vizrt 2110 I/O Module User Guide
Version 1.1 | Published May 18, 2021 ©
Input and Output Connections

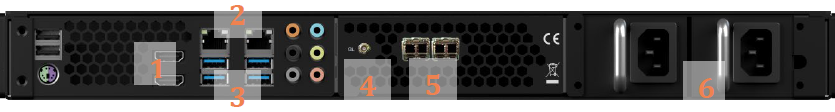

External audio and video sources are connected to the appropriate inputs on Viz 2110 IO’s backplane.
-
HDMI: Monitor port
-
Ethernet: Network connections
-
USB: Connects keyboard, mouse and other peripheral devices.
-
RESERVED: HD-BNC connector (High Density BNC)
-
SFP A and SFP B
-
Power
