Viz Arc User Guide

Viz Arc provides a Web API that allows you to set DataMap variables, trigger specific actions or control the Playlist.

The samples below assume that Arc is running on localhost and the In-App Web API is configured to run on port 5004. The In-App Web API port can be configured in the General Settings, under the Communication section. Please note that this In-App Web API is only accessible when the Viz Arc application is running.

A Swagger webapp that describes every API can be found at http://localhost:5004/swagger/.

This section contains the following examples:

Information: The samples below use curl command line tools to demonstrate usage and python to beautify the returned JSON output. Note that these tools are not required for the Web API to function correctly.

HTTPS

Both web APIs can be served over HTTPS. Under General Settings > Communication, configure the In-App Web API HTTPS Port and/or the REST Web API HTTPS Port together with a PFX Certificate and its password. The HTTPS endpoint is offered in addition to the regular HTTP port. HTTPS is recommended whenever the API is used from other machines – it also enables browser features that require a secure context, such as hardware-accelerated video playback in the web interface.

Status

The Status endpoint allows you to get basic information of the running Viz Arc instance, such as version and uptime.

GET api/v1/status

curl -s -X GET http://localhost:5004/api/v1/Status | python -m json.tool

{
    "version": "Viz Arc 1.8.0.2116",
    "license": "CORE",
    "uptime": "00:59:14.8406020"
}

ActionCanvas

The ActionCanvas endpoint allows you to retrieve all actions of a project, including information about their position, color, id etc.. It also allows you to select an action specified by the id or name. An interactive demo page using this API can be found at http://localhost:5004/.

GET /api/v1/actioncanvas

This endpoints returns all actions of the currently loaded project. The property "actions" contains an array of all actions. The property tabs contains the information about the project tabs.

curl -s -X GET http://localhost:5004/api/v1/ActionCanvas | python -m json.tool

{
    "tabs": [
        {
            "name": "show",
            "isEditorOnly": false
        },
        {
            "name": "Startlist",
            "isEditorOnly": false
        }
    ],
    "selectedTabIndex": 0,
    "actions": [
        {
            "uuid": "a090e1c9-28ad-4c4f-976d-2727befe182d",
            "name": "Title Day 1",
            "type": "TEMPLATE",
            "actionType": null,
            "engineType": "VIZ",
            "xSector": 1,
            "ySector": 0,
            "widthSector": 1,
            "heightSector": 1,
            "tab": 0,
            "delay": 0,
            "actionColor": "#65686B",
            "textColor": "#DBDCDD"
        },
        {
            "uuid": "95c0bc26-fb63-4ffe-becf-bd42db7ae5f8",
            "name": "Startlist",
            "type": "TEMPLATE",
            "actionType": null,
            "engineType": "VIZ",
            "xSector": 0,
            "ySector": 1,
            "widthSector": 1,
            "heightSector": 1,
            "tab": 1,
            "delay": 0,
            "actionColor": "#65686B",
            "textColor": "#DBDCDD"
        }
    ],
    "project": "Skating"
}

POST /api/v1/actioncanvas/select/{id | name}

Selects an action specified by the id or name.

curl -s -X POST http://localhost:5004/api/v1/ActionCanvas/select/13ddcaa8-e52a-4357-85d6-5731f3b45ebd

200 OK

ActionExecuter

The ActionExecuter endpoint allows you to execute a specific action either by using its name or its ID.

GET /api/v1/actionexecuter/{id | name}

Executes the action specified by the id or name.

curl -s -X GET http://localhost:5004/api/v1/ActionExecuter/27cc7a3b-6f90-4d88-9101-a356a1668d83

200 OK

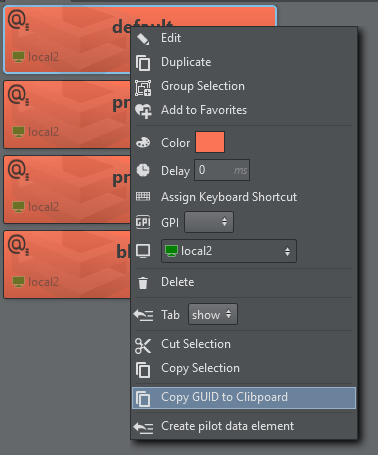

Using the ID variant is preferable as it uniquely identifies an action. Although the name might appear multiple times in your action collection, only the first action with the specified name is triggered.

GET /api/v1/actionexecuter/{id | name}/continue

Executes a "Continue" on a template action specified by the name.

curl -s -X GET http://localhost:5004/api/v1/ActionExecuter/27cc7a3b-6f90-4d88-9101-a356a1668d83/continue

200 OK

GET /api/v1/actionexecuter/{id | name}/out

Executes a "Out" on a template action specified by the name.

curl -s -X GET http://localhost:5004/api/v1/ActionExecuter/27cc7a3b-6f90-4d88-9101-a356a1668d83/out

200 OK

GET /api/v1/actionexecuter/{id | name}/update

Executes a "Update" on a template action specified by the name.

curl -s -X GET http://localhost:5004/api/v1/ActionExecuter/27cc7a3b-6f90-4d88-9101-a356a1668d83/update

200 OK

POST /api/v1/ActionExecuter/{id}/start-script

Starts (or restarts) the script of the template action with the given UUID, as when pressing the script Start button: the script engine is set up, the code runs from the top and its callbacks are registered. This does not execute the template – use the execute endpoint above for playout.

curl -s -X POST http://localhost:5004/api/v1/ActionExecuter/3fa85f64-5717-4562-b3fc-2c963f66afa6/start-script

200 OK – returns 404 Not Found when the UUID does not refer to a template action.

POST /api/v1/ActionExecuter/start-global-script

Starts the project's global script, as when pressing the Start button in the Script view.

curl -s -X POST http://localhost:5004/api/v1/ActionExecuter/start-global-script

200 OK – returns 400 Bad Request when the global script could not be started, for example when no project is loaded.

Arena

The Arena APIs allow you to control the Viz Arena integration.

GET /api/v1/arena/detectArenaCalibration

Detects the calibration.

curl -s -X GET http://localhost:5004/api/v1/arena/detectArenaCalibration | python -m json.tool

200 OK

GET /api/v1/arena/clearArenaCalibration

Clears the current calibration.

curl -s -X GET http://localhost:5004/api/v1/arena/clearArenaCalibration | python -m json.tool

200 OK

GET /api/v1/arena/clearArenaKeyer

Clears the Viz Arena keyer.

curl -s -X GET http://localhost:5004/api/v1/arena/clearArenaKeyer | python -m json.tool

200 OK

GET /api/v1/arena/setArenaCamera/{id}

Sets the active arena camera.

curl -s -X GET http://localhost:5004/api/v1/arena/setArenaCamera/1 | python -m json.tool

200 OK

DataMap

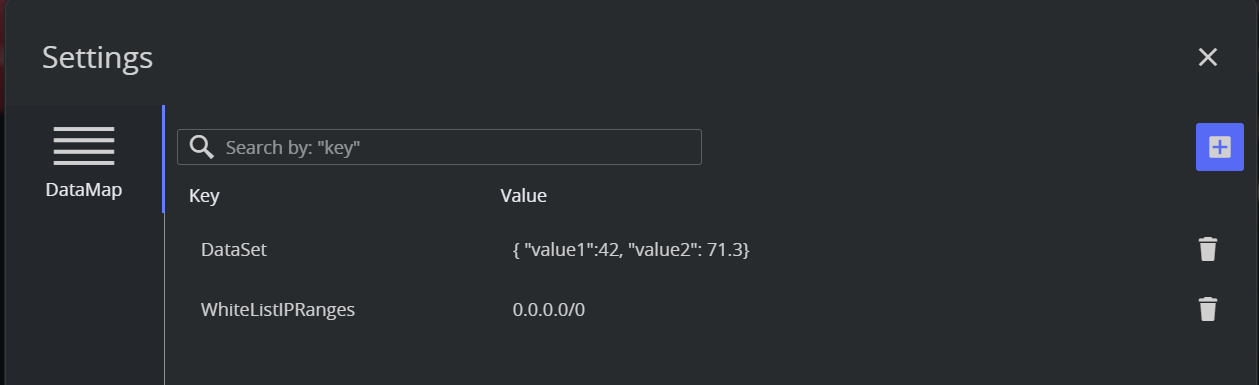

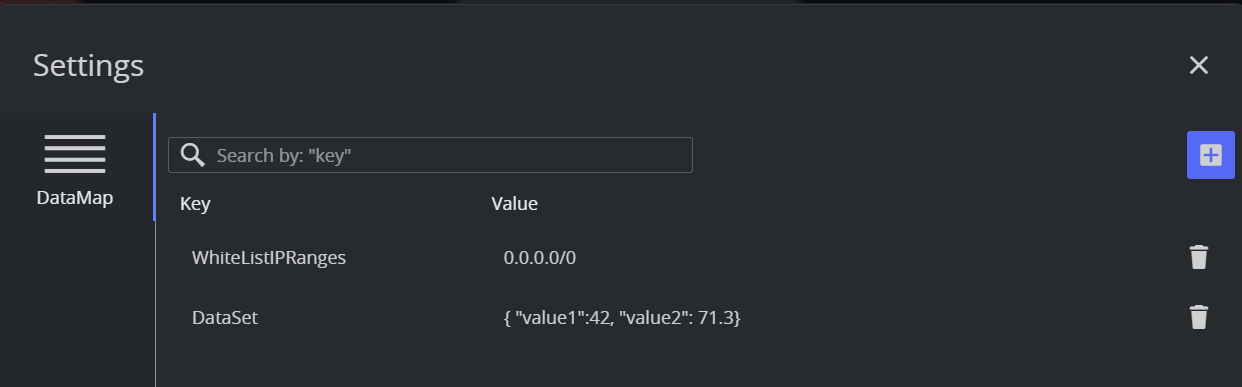

You can set, read and delete DataMap variables through the Web API. An interactive web application can be found at http://localhost:5004/DataMap.

GET /api/v1/DataMap

Gets the list of all the key-value pairs.

curl -s -X GET http://localhost:5004/api/v1/DataMap | python -m json.tool

[
    {
        "key": "Hello",
        "value": "World!"
    },
    {
        "key": "WhiteListIPRanges",
        "value": "0.0.0.0/0"
    }
]

GET /api/v1/DataMap/{key}

Gets the key-value pair identified by the specified key.

curl -s -X GET http://localhost:5004/api/v1/DataMap/key | python -m json.tool

{
    "key": "Hello",
    "value": "World!"
}

POST /api/v1/DataMap

Adds a new key-value pair or an array of them to the DataMap. The payload must be sent as JSON body. If the key already exists the value is updated.

curl -s -H 'Content-Type: application/json' -d "{ 'Key': 'Hello', 'Value': 'World!' }" -X POST http://localhost:5004/api/v1/DataMap

{
    "Key": "key",
    "Value": "hello"
}

DELETE /api/v1/DataMap/{key}

Deletes a key/value pair by sending a DELETE message, for example to delete "key2" use:

curl -s -X DELETE http://localhost:5004/api/v1/DataMap/key2 | python -m json.tool

200 OK

Object Tracker

The Object Tracker APIs allow you to control the Object Tracker integration.

GET /api/v1/objectTracker/takeTracker

Takes all active trackers On Air.

curl -s -X GET http://localhost:5004/api/v1/objectTracker/takeTracker | python -m json.tool

200 OK

GET /api/v1/objectTracker/takeOutTracker

Takes all active trackers Off Air.

curl -s -X GET http://localhost:5004/api/v1/objectTracker/takeOutTracker | python -m json.tool

200 OK

GET /api/v1/objectTracker/previewTracker

Previews all active trackers on the preview channel.

curl -s -X GET http://localhost:5004/api/v1/objectTracker/PreviewTracker | python -m json.tool

200 OK

GET /api/v1/objectTracker/previewOutTracker

Previews out all active trackers on the preview channel.

curl -s -X GET http://localhost:5004/api/v1/objectTracker/PreviewOutTracker | python -m json.tool

200 OK

GET /api/v1/objectTracker/stopTracker/{id}

Stops the tracker with index {id}, starting from index 1.

curl -s -X GET http://localhost:5004/api/v1/objectTracker/stopTracker/1 | python -m json.tool

200 OK

GET /api/v1/objectTracker/setActiveTracker/{id}

Sets the active tracker with index {id}, starting from index 1.

curl -s -X GET http://localhost:5004/api/v1/objectTracker/setActiveTracker/1 | python -m json.tool

200 OK

GET /api/v1/objectTracker/resetPointerOffset/{id}

Resets the pointer offset of the tracker with index {id}, starting from index 1.

curl -s -X GET http://localhost:5004/api/v1/objectTracker/resetPointerOffset/1 | python -m json.tool

200 OK

Playlist

You can read, trigger, preview and iterate through the playlist through the Web API. An interactive web application can be found at http://localhost:5004/PlayList.

GET /api/v1/playlist

Gets all the tabs.

curl -s -X GET http://localhost:5004/api/v1/PlayList | python -m json.tool

[
    {
        "duration": 10.0,
        "index": 0,
        "name": "Morning",
        "rows": [
            {
                "actionUUID": "b78801bd-c802-42dd-ae11-9955c53dbfe3",
                "duration": 5.0,
                "id": "aaf0b451-1bb6-4bae-b11d-3b0c5f552e36",
                "name": "AB"
            },
            {
                "actionUUID": "6dd3107a-9487-4f32-92a0-b7eb83a1328f",
                "duration": 5.0,
                "id": "58b51c71-a904-4c95-b5d8-f42184af025e",
                "name": "CD"
            }
        ]
    },
    {
        "duration": 15.0,
        "index": 1,
        "name": "Afternoon",
        "rows": [
            {
                "actionUUID": "27cc7a3b-6f90-4d88-9101-a356a1668d83",
                "duration": 5.0,
                "id": "7f284bd1-a727-4e26-aea8-f417010c5386",
                "name": "Opener"
            },
            {
                "actionUUID": "955a622a-862b-4206-9658-a48b0c9f9a7e",
                "duration": 5.0,
                "id": "f43b4470-d08c-4261-8fb2-58ef97c4db28",
                "name": "Closer"
            },
            {
                "duration": 5.0,
                "id": "483231c0-5484-478c-9bbc-74530dafa7cd",
                "loop": false,
                "name": "old",
                "rows": [
                    {
                        "actionUUID": "ae7d2e75-552f-40e7-8c3d-7a8ef716809a",
                        "duration": 5.0,
                        "id": "c542f3d4-53d3-4aa1-82d1-8e75ae86342b",
                        "name": "Show Monitor"
                    }
                ]
            }
        ]
    }
]

The GET method returns all Playlist tabs and their respective rows and folders.

The screenshot above shows the query result for the "Morning" Playlist tab.

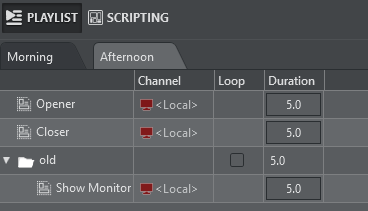

The screenshot above shows the query result for the "Afternoon" Playlist tab.

GET /api/v1/playlist/{index}

Gets the content of the playlist tab, by specifying its index.

curl -s -X GET http://localhost:5004/api/v1/PlayList/0 | python -m json.tool

{
    "duration": 10.0,
    "index": 0,
    "name": "Morning",
    "rows": [
        {
            "actionUUID": "b78801bd-c802-42dd-ae11-9955c53dbfe3",
            "duration": 5.0,
            "id": "17a6ee8d-8c82-4480-9bda-32e4b9447336",
            "name": "AB"
        },
        {
            "actionUUID": "6dd3107a-9487-4f32-92a0-b7eb83a1328f",
            "duration": 5.0,
            "id": "4580c837-69a9-41b4-95dc-29b05f1ae0d4",
            "name": "CD"
        }
    ]
}

Starting from index 0 this call returns a single playlist tab only.

PlaylistExecuter

The PlaylistExecuter endpoint allow you to execute and preview individual playlist elements identified by their id.

GET api/v1/PlaylistExecuter/execute/{id}

Executes the playlist element identified by id.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/execute/2628b63d-e947-4ee6-9dd2-5c90525e2cf5 | python -m json.tool

200 OK

GET api/v1/PlaylistExecuter/continue/{id}

Continues the playlist element identified by id.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/continue/2628b63d-e947-4ee6-9dd2-5c90525e2cf5 | python -m json.tool

200 OK

GET api/v1/PlaylistExecuter/preview/{id}

Executes the playlist element identified by id on the preview channel.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/preview/2628b63d-e947-4ee6-9dd2-5c90525e2cf5 | python -m json.tool

200 OK

GET api/v1/PlaylistExecuter/previewContinue/{id}

Continues the playlist element identified by id on the preview channel.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/previewContinue/2628b63d-e947-4ee6-9dd2-5c90525e2cf5 | python -m json.tool

200 OK

GET api/v1/PlaylistExecuter/playPlaylistByName/{name}

Plays every item in the playlist identified by name.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/playPlaylistByName/myPlaylist | python -m json.tool

200 OK

GET api/v1/PlaylistExecuter/playPlaylistByIndex/{id}

Plays every item in the playlist identified by Id.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/playPlaylistByIndex/1 | python -m json.tool

200 OK

Playlist Controls on the Currently Selected Playlist

The following commands are invoked against the Playlist that is currently selected in Viz Arc:

GET api/v1/playlistexecuter/executeCurrent

Executes the currently selected playlist element.

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/executeCurrent

200 OK

GET api/v1/playlistexecuter/continueCurrent

Continues the currently selected playlist element.

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/continueCurrent | python -m json.tool

200 OK

GET api/v1/playlistexecuter/outCurrent

Takes out the currently selected playlist element (only for template actions).

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/outCurrent | python -m json.tool

200 OK

GET api/v1/playlistexecuter/previewCurrent

Executes the currently selected playlist element on the preview channel.

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/previewCurrent | python -m json.tool

200 OK

GET api/v1/playlistexecuter/previewContinueCurrent

Continues the currently selected playlist element on the preview channel.

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/previewContinueCurrent | python -m json.tool

200 OK

GET api/v1/playlistexecuter/previewOutCurrent

Takes out the currently selected playlist element on the preview channel (only for template actions).

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/previewOutCurrent | python -m json.tool

200 OK

GET api/v1/playlistexecuter/executeAndNext

Executes the currently selected playlist element and moves to the next playlist item.

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/executeAndNext | python -m json.tool

200 OK

GET api/v1/playlistexecuter/gotoFirst

Selects the first playlist item.

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/gotoFirst | python -m json.tool

200 OK

GET api/v1/playlistexecuter/playCurrentPlaylist

Plays every item in the currently selected playlist.

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/playCurrentPlaylist | python -m json.tool

200 OK

GET api/v1/playlistexecuter/stopCurrentPlaylist

Stops the execution of the currently selected playlist.

curl -s -X GET http://localhost:5004/api/v1/playlistexecuter/stopCurrentPlaylist | python -m json.tool

200 OK

Playlist Row creation and manipulation

POST /api/v1/playlist/{tabIndex}/actionRow

Adds an action row to the playlist tab at position tabIndex. The action is referenced by its UUID (see the ActionCanvas endpoints). targetFolderUuid and insertIndex are optional – when omitted, the row is appended at the end of the tab; with a folder UUID it is placed inside that group, and insertIndex selects the position within the parent.

curl -s -X POST http://localhost:5004/api/v1/playlist/0/actionRow -H "Content-Type: application/json" -d '{ "actionUUID": "3fa85f64-5717-4562-b3fc-2c963f66afa6" }'

200 OK – returns 404 Not Found when no action with the given UUID exists.

POST /api/v1/playlist/{tabIndex}/payloadRow

Adds a payload row: an action together with a stored set of parameter values that are applied when the row is executed. The payload string accepts both JSON and VDF; the format is detected automatically. payloadLabel is the display name of the row, targetFolderUuid and insertIndex work as for actionRow.

curl -s -X POST http://localhost:5004/api/v1/playlist/0/payloadRow -H "Content-Type: application/json" -d '{ "actionUUID": "3fa85f64-5717-4562-b3fc-2c963f66afa6", "payload": "{ \"f0\": \"Jane Doe\", \"f1\": \"Anchor\" }", "payloadLabel": "Lower Third Jane" }'

200 OK

POST /api/v1/playlist/{tabIndex}/itemRow

Adds an item row of a given type. Item rows reference project-level items instead of canvas actions; the available type is CAMERA_SHOT (Virtual Camera Flight shots, referenced by shot id). label, targetFolderUuid and insertIndex are optional.

curl -s -X POST http://localhost:5004/api/v1/playlist/0/itemRow -H "Content-Type: application/json" -d '{ "itemType": "CAMERA_SHOT", "itemId": "9b2f4c8e-0d31-4f7a-a1c2-5e6d7f8a9b0c", "label": "Fly to Desk" }'

200 OK

PUT /api/v1/playlist/itemRow/{id}

Updates an existing item row in place. Only the fields present in the body are changed: overrides (per-row value overrides), label and preferredChannel.

curl -s -X PUT http://localhost:5004/api/v1/playlist/itemRow/9b2f4c8e-0d31-4f7a-a1c2-5e6d7f8a9b0c -H "Content-Type: application/json" -d '{ "label": "Fly to Desk (wide)", "preferredChannel": "PVW" }'

200 OK

Playlist Channels

GET /api/v1/playlist/channels

Returns the channels available to item rows: the default program channel of the active profile and every Viz channel of the profile, each with its live status.

curl -s -X GET http://localhost:5004/api/v1/playlist/channels | python -m json.tool

{
    "defaultLabel": "<PGM>",
    "defaultStatus": "ALL_ACTIVE",
    "channels": [
        { "name": "PGM", "status": "ALL_ACTIVE" },
        { "name": "PVW", "status": "ALL_INACTIVE" }
    ]
}

GET /api/v1/playlist/mseChannels

Returns the channel options for unmapped MSE rows: the channels of the default MSE profile. The default entry means "no override" and is labeled with the profile's program channel. MSE channels carry no Viz profile status, so status stays empty.

curl -s -X GET http://localhost:5004/api/v1/playlist/mseChannels | python -m json.tool

{
    "defaultLabel": "<A>",
    "defaultStatus": "",
    "channels": [
        { "name": "A", "status": "" },
        { "name": "B", "status": "" }
    ]
}

PUT /api/v1/playlist/mseRow/{id}/channel

Sets the direct-playout channel override of an unmapped MSE row; an empty or null channel clears the override. Mapped rows play out through their template's own channel setting and are not affected.

curl -s -X PUT http://localhost:5004/api/v1/playlist/mseRow/9b2f4c8e-0d31-4f7a-a1c2-5e6d7f8a9b0c/channel -H "Content-Type: application/json" -d '{ "channel": "B" }'

200 OK – returns 404 Not Found when the row does not exist.

Playlist row selection, callup codes and per-row settings

GET /api/v1/PlaylistExecuter/executeByCallup/{code}

Executes the row carrying the given numeric callup code on the active playlist tab. Callup codes give every row a stable number – like page numbers in Viz Trio – that external panels and keypads can recall directly.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/executeByCallup/1000

200 OK

GET /api/v1/PlaylistExecuter/select/{id}

Selects a row without executing it. The selection is mirrored to the Viz Arc application and all connected web clients, so executeCurrent and the other current-row endpoints operate on it afterwards.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/select/3fa85f64-5717-4562-b3fc-2c963f66afa6

200 OK

GET /api/v1/PlaylistExecuter/setCallup/{id}/{code}

Assigns a callup code to a row; code 0 removes it.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/setCallup/3fa85f64-5717-4562-b3fc-2c963f66afa6/1010

200 OK – returns 409 Conflict when the code is already in use by another row.

GET /api/v1/PlaylistExecuter/setDuration/{id}/{seconds}

Sets a row's duration in seconds and returns the recomputed durations of all affected rows – including the totals of the groups the row belongs to – as a map of row UUID to seconds.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/setDuration/3fa85f64-5717-4562-b3fc-2c963f66afa6/5.0 | python -m json.tool

{
    "3fa85f64-5717-4562-b3fc-2c963f66afa6": 5.0,
    "9b2f4c8e-0d31-4f7a-a1c2-5e6d7f8a9b0c": 12.5
}

GET /api/v1/PlaylistExecuter/setExecuteAsUnit/{id}/{executeAsUnit}

Toggles whether a group row executes as a single unit (true or false).

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/setExecuteAsUnit/3fa85f64-5717-4562-b3fc-2c963f66afa6/true

200 OK

GET /api/v1/PlaylistExecuter/setLoop/{id}/{loop}

Enables or disables looping for a row (true or false).

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/setLoop/3fa85f64-5717-4562-b3fc-2c963f66afa6/true

200 OK

GET /api/v1/PlaylistExecuter/changePlaylistTab/{name}

Switches the active playlist tab by name. The active tab is the one the current-row endpoints and callup recall operate on.

curl -s -X GET http://localhost:5004/api/v1/PlaylistExecuter/changePlaylistTab/Show%20Open

200 OK

Projects

The Projects endpoint allows you to get a list of all available projects and to load a project.

Information: Viz Arc can store and read projects from two different locations, Graphic Hub or the local file system. In order to distinguish the source of the project, the project's name is prefixed by the keywords "gh:" or "local:" (for example, "gh:sunday_elections" or "local:sunday_elections").

Also, the "location" property in the responses, indicates whether the project resides on Graphic Hub (value "1") or the file system (value "0").

GET api/v1/projects

Returns a list of all available Projects, first the projects located on the Graphic Hub, then the ones on the file system.

curl -s -X GET http://localhost:5004/api/v1/Projects | python -m json.tool

[
    {
        "name": "gh:Animations",
        "lastModified": "2023-05-09T13:53:32.4633996+00:00",
        "location": 1,
        "profileIndex": 0,
        "tabs": []
    },
    {
        "name": "local:Skating",
        "lastModified": "2023-05-11T07:53:51.80198+00:00",
        "location": 0,
        "profileIndex": 0,
        "tabs": []
    }
]

In the example above, two projects were found.

The name of the project is prefixed by the keywords "gh:" or "local:"; this prefix indicates whether the project is stored in the Graphic Hub or on the file system.

GET api/v1/projects/{id}

Returns the project with the specified id, if it exists. If two projects with the same name exist in Graphic Hub and the local disk, the one of the local disk is returned first.

curl -s -X GET http://localhost:5004/api/v1/Projects/Animations | python -m json.tool

{
    "name": "gh:Animations",
    "lastModified": "2023-05-09T13:53:32.4633996+00:00",
    "location": 1,
    "profileIndex": 0,
    "tabs": []
}

GET api/v1/projects/load/{id}

Loads the project with the specified id in Viz Arc. If the id does not contain the location prefix, then Viz Arc tries to retrieve the project with a given name by looking in the Graphic Hub first, then the file system.

curl -s -X GET http://localhost:5004/api/v1/Projects/load/local:Skating | python -m json.tool

200 OK

GET api/v1/projects/current

Gets the name and location (Local or GraphicHub) of the currently loaded project.

curl -s -X GET http://localhost:5004/api/v1/projects/current | python -m json.tool

{
    "name": "local:Skating",
    "lastModified": "2023-05-11T07:53:51.80198+00:00",
    "location": 0,
    "profileIndex": 2,
    "tabs": [
        {
            "name": "show",
            "index": 0,
            "isEditorOnly": false,
            "actions": [
                {
                    "uuid": "ff1ae771-4c69-42e4-ba8a-ad98747a5477",
                    "name": "Logo",
                    "type": "Template",
                    "actionType": "TEMPLATE",
                    "engineType": "VIZ",
                ...

Profiles

The Profiles endpoint allows you to retrieve information about the available Profiles, Channels and Engines.

GET /api/v1/profiles

Returns the entire list of profiles available in Viz Arc.

curl -s -X GET http://localhost:5004/api/v1/profiles | python -m json.tool

[
    {
        "name": "Local",
        "channels": [
            {
                "name": "Local",
                "type": 1,
                "engines": [
                    {
                        "name": "localhost"
                    }
                ],
                "model": {
                    "engineConfigTuple": [
                        {
                            "item1": {
                                "name": "localhost",
                                "ipAddress": "127.0.0.1",
                                "port": 6100,
                                "launcherPort": 5644,
                                "webInterfacePort": 30010,
                                "webSocketPort": 30020,
                                ...

GET api/v1/profiles/{id | name}

Returns the profile specified by the id or name.

curl -s -X GET http://localhost:5004/api/v1/profiles/0 | python -m json.tool

{
    "name": "Local",
    "channels": [
        {
            "name": "Local",
            "type": 1,
            "engines": [
                {
                    "name": "localhost"
                }
            ],
            "model": {
                "engineConfigTuple": [
                    {
                        "item1": {
                            "name": "localhost",
                            "ipAddress": "127.0.0.1",
                            "port": 6100,
                            "launcherPort": 5644,
                            "webInterfacePort": 30010,
                            "webSocketPort": 30020,
                            ...

GET api/v1/profiles/current

Returns the currently selected profile.

curl -s -X GET http://localhost:5004/api/v1/profiles/current | python -m json.tool

{
    "name": "Local",
    "channels": [
        {
            "name": "Local",
            "type": 1,
            "engines": [
                {
                    "name": "localhost"
                }
            ],
            "model": {
                "engineConfigTuple": [
                    {
                        "item1": {
                            "name": "localhost",
                            "ipAddress": "127.0.0.1",
                            "port": 6100,
                            "launcherPort": 5644,
                            "webInterfacePort": 30010,
                            "webSocketPort": 30020,
                            ...

POST api/v1/profiles

Sets the currently active profile.

curl -s -H 'Content-Type: application/json' -d "{ 'name': 'production' }" -X POST http://localhost:5004/api/v1/profiles

{
    "name": "productionA"
}

curl -s -H 'Content-Type: application/json' -d "{ 'index': 0 }" -X POST http://localhost:5004/api/v1/profiles

{
    "index": 0
}

Index starts at 0 for the first profile.

Unreal Status

Read-only monitoring of the Unreal Engines in the active profile, useful for dashboards and automation health checks.

GET /api/v1/UnrealStatus

Returns all Unreal Engines of the active profile with their connection parameters, channel, connection status and whether the engine is in play mode.

curl -s -X GET http://localhost:5004/api/v1/UnrealStatus | python -m json.tool

[
    {
        "name": "Unreal Main",
        "host": "192.168.1.50",
        "port": 5644,
        "launcherPort": 5634,
        "webInterfacePort": 30010,
        "webSocketPort": 30020,
        "channel": "UE1",
        "connectionStatus": "Connected",
        "isInPlayMode": true
    },
    {
        "name": "Unreal Backup",
        "host": "192.168.1.51",
        "port": 5644,
        "launcherPort": 5634,
        "webInterfacePort": 30010,
        "webSocketPort": 30020,
        "channel": "UE2",
        "connectionStatus": "Disconnected",
        "isInPlayMode": false
    }
]

GET /api/v1/UnrealStatus/{engineName}

Returns the connection status of a single engine by name (case-insensitive).

curl -s -X GET "http://localhost:5004/api/v1/UnrealStatus/Unreal%20Main" | python -m json.tool

{
    "connectionStatus": "Connected"
}

Returns 404 Not Found for an unknown engine name.

GET /api/v1/UnrealStatus/scene

Returns the scene currently active in Viz Arc's Unreal scene view and whether its content has finished loading.

curl -s -X GET http://localhost:5004/api/v1/UnrealStatus/scene | python -m json.tool

{
    "name": "StudioLevel",
    "isLoaded": true
}

Returns 404 Not Found when no Unreal scene is currently active.

GET /api/v1/UnrealStatus/streamingLevels

Returns the streaming levels of the currently loaded Unreal scene and their load state.

curl -s -X GET http://localhost:5004/api/v1/UnrealStatus/streamingLevels | python -m json.tool

[
    {
        "name": "Studio_Base",
        "path": "/Game/Maps/Studio_Base",
        "isLoaded": true
    },
    {
        "name": "Studio_AR_Extension",
        "path": "/Game/Maps/Studio_AR_Extension",
        "isLoaded": false
    }
]

Returns 404 Not Found when no Unreal scene is currently loaded.

VCF Camera Shots

The camera shot library of the Virtual Camera Flight tab is available through the API: shots can be listed, created, captured from the engine, edited, reordered and recalled. Shots are stored with the project; playlist CAMERA_SHOT rows reference them by id, so external panels can recall the same shots the operator uses.

GET /api/v1/vcf/shots

Returns all camera shots of the project, in rail order.

curl -s -X GET http://localhost:5004/api/v1/vcf/shots | python -m json.tool

[
    {
        "id": "9b2f4c8e0d314f7aa1c25e6d7f8a9b0c",
        "name": "Wide Desk",
        "posX": 350.0,
        "posY": 180.0,
        "posZ": 420.0,
        "rotX": -12.0,
        "rotY": 45.0,
        "rotZ": 0.0,
        "fov": 34.0,
        "thumbnailData": "/9j/4AAQSkZJRg...",
        "defaultAnimationSpeed": 1.0,
        "ndiVelocity": 1.0
    }
]

thumbnailData is the shot's thumbnail as a Base64-encoded image (shortened here).

POST /api/v1/vcf/shots

Creates a shot from explicit values. The server assigns the id; a client-supplied id is ignored. Returns the created shot.

curl -s -X POST http://localhost:5004/api/v1/vcf/shots -H "Content-Type: application/json" -d '{ "name": "Wide Desk", "posX": 350, "posY": 180, "posZ": 420, "rotY": 45, "fov": 34 }'

200 OK with the created shot, including its new id.

POST /api/v1/vcf/shots/capture

Captures the engine's current VCF camera into a new shot, including a thumbnail of the rendered frame. Returns the created shot.

curl -s -X POST http://localhost:5004/api/v1/vcf/shots/capture -H "Content-Type: application/json" -d '{ "name": "Presenter Close" }'

200 OK with the captured shot – returns 400 Bad Request when no Viz Engine is connected.

PUT /api/v1/vcf/shots/{id}

Full update of a shot (rename, re-position, change FOV or animation speed). The id in the route identifies the shot; the body carries the complete new state.

curl -s -X PUT http://localhost:5004/api/v1/vcf/shots/9b2f4c8e0d314f7aa1c25e6d7f8a9b0c -H "Content-Type: application/json" -d '{ "name": "Wide Desk (high)", "posX": 350, "posY": 260, "posZ": 420, "rotY": 45, "fov": 34 }'

200 OK with the updated shot – returns 404 Not Found for an unknown id.

DELETE /api/v1/vcf/shots/{id}

Deletes a shot from the library.

curl -s -X DELETE http://localhost:5004/api/v1/vcf/shots/9b2f4c8e0d314f7aa1c25e6d7f8a9b0c

200 OK – returns 404 Not Found for an unknown id.

POST /api/v1/vcf/shots/reorder

Moves a shot to a new position in the shot rail.

curl -s -X POST http://localhost:5004/api/v1/vcf/shots/reorder -H "Content-Type: application/json" -d '{ "id": "9b2f4c8e0d314f7aa1c25e6d7f8a9b0c", "newIndex": 0 }'

200 OK

POST /api/v1/vcf/shots/{id}/snapshot

Refreshes the shot's thumbnail from the engine's currently rendered frame; the camera pose is kept. Returns the updated shot.

curl -s -X POST http://localhost:5004/api/v1/vcf/shots/9b2f4c8e0d314f7aa1c25e6d7f8a9b0c/snapshot

200 OK with the updated shot

POST /api/v1/vcf/shots/{id}/recall

Recalls a shot on the engine: with animate (default true) the camera flies to the shot, with animate: false it hard-cuts.

curl -s -X POST http://localhost:5004/api/v1/vcf/shots/9b2f4c8e0d314f7aa1c25e6d7f8a9b0c/recall -H "Content-Type: application/json" -d '{ "animate": true }'

200 OK – returns 404 Not Found for an unknown id.

VideoStream

The live preview of the local Viz Engine output that powers the web interface (see Web Preview) is also available as a plain MJPEG stream. It renders directly in an <img> tag, which makes it easy to embed the program output into dashboards and control pages. Streaming is available while the web video preview is enabled in the configuration.

GET /api/v1/videostream/sources

Lists the available video sources.

curl -s -X GET http://localhost:5004/api/v1/videostream/sources | python -m json.tool

[
    {
        "name": "VizOutput",
        "type": "VIZ",
        "url": null
    }
]

type is one of VIZ, VIZPREVIEW, UNREAL, NDI, DIRECT_SHOW or FLOWICS. For Flowics sources, url carries the overlay's page URL – a Flowics output is an HTML page meant to be embedded directly instead of streamed as video.

GET /api/v1/videostream/{sourceName}

Opens an MJPEG stream (multipart/x-mixed-replace) for the given source. Omitting the source name streams the Viz Engine output. The connection stays open and delivers frames until the client disconnects.

<img src="http://localhost:5004/api/v1/videostream/VizOutput">

200 OK (continuous stream) – returns 404 Not Found for an unknown source name and 503 Service Unavailable while web video streaming is disabled.

Web API Access Control

It is possible to inhibit calls to the PlayListExecuter and the ActionExecuter APIs with the IP whitelisting.

IP Whitelist

You can configure the IP addresses/ranges that are allowed to use the APIs. These have to be specified using a semi-colon (;) separated list of IP ranges (in CIDR notation). By default, the range is 0.0.0.0/0 which means all hosts can access the API.

The IP Whitelist can be configured in three different ways:

Manually in the General Settings(under the Communication section)
Web Application
Scripting

Web Application Whitelist Configuration

If you want to allow only two machines with IP addresses (for example, 192.168.1.100 and 192.168.1.142) you can specify them by reaching the page http://localhost:5004/home/settings#datamap and set the value of the WhiteListIPRanges key, as in the snapshot below.

Scripting Whitelist Configuration

Set Whitelist IPs through Scripting

SetData("WhiteListIPRanges", "192.168.1.100;192.168.1.142")

Web Application Sample Usage

When Viz Arc starts up, it also launches an internal In-App Web Server which host a Web Application that makes use of some of the APIs described above.

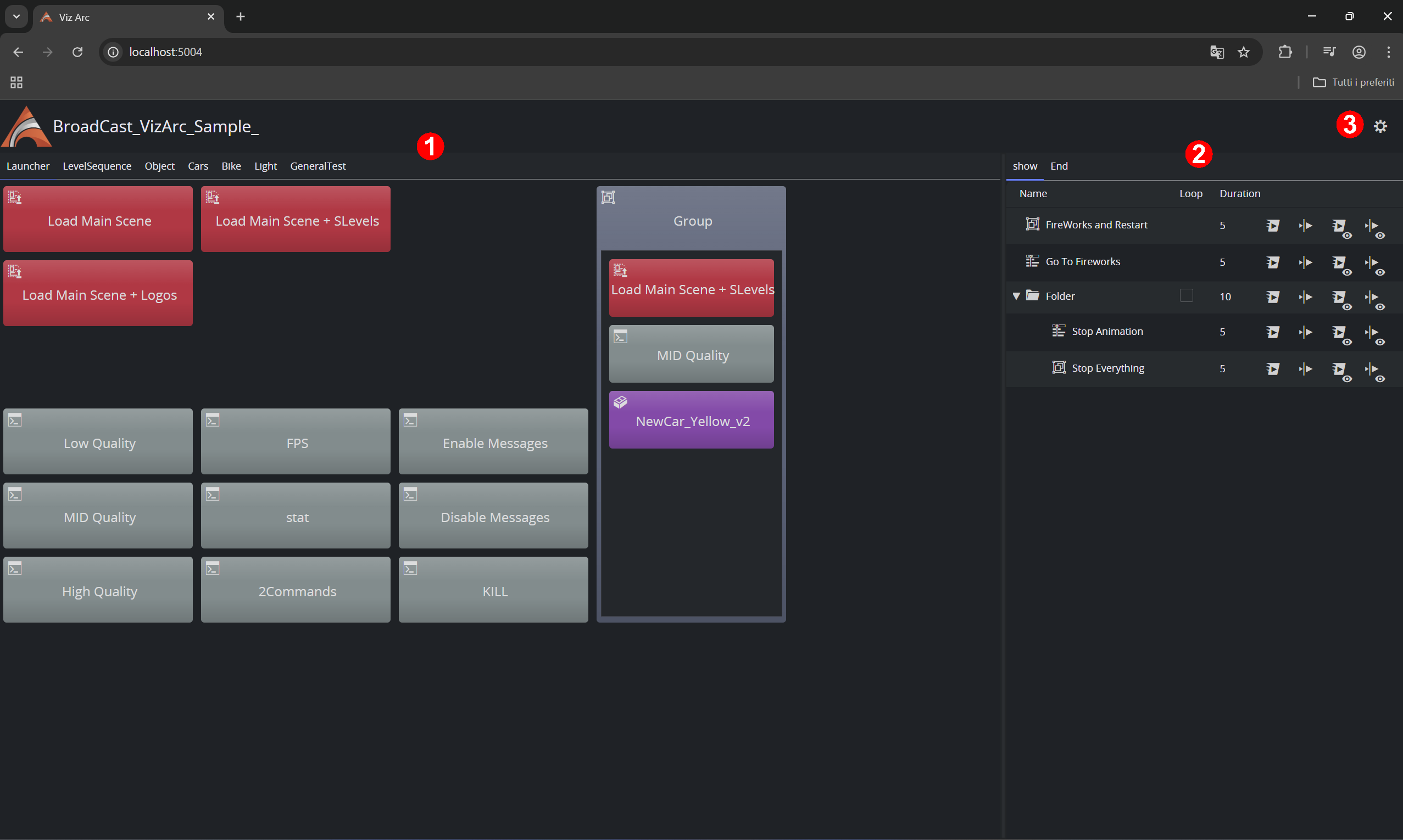

Navigate to http://localhost:5004/ (the port can be configured in the General Settings, under the Communication section) to see the currently loaded project in Viz Arc. For example:

Actions: The project loaded in Viz Arc. Click any action to execute it.
PlayList: Triggers all available playlists.
Datamap: Opens a new dialog. From here you can add, delete or modify any DataMap variable.

Triggering a Viz Arc Action from the Web Browser

You can easily trigger a Viz Arc action for the currently loaded project using its GUID or just its name. First, get the GUID and name from the action:

The GUID is now copied to the clipboard from where you can easily paste it anywhere else (for example, to notepad):

Typing http://localhost:5004/api/v1/ActionExecuter/203e10df-8ba1-403c-a378-4d93186f4d06 or http://localhost:5004/api/v1/ActionExecuter/default triggers the action.

Information: Be aware that triggering only works when Viz Arc is running and when the project that contains the requested Action is open.
