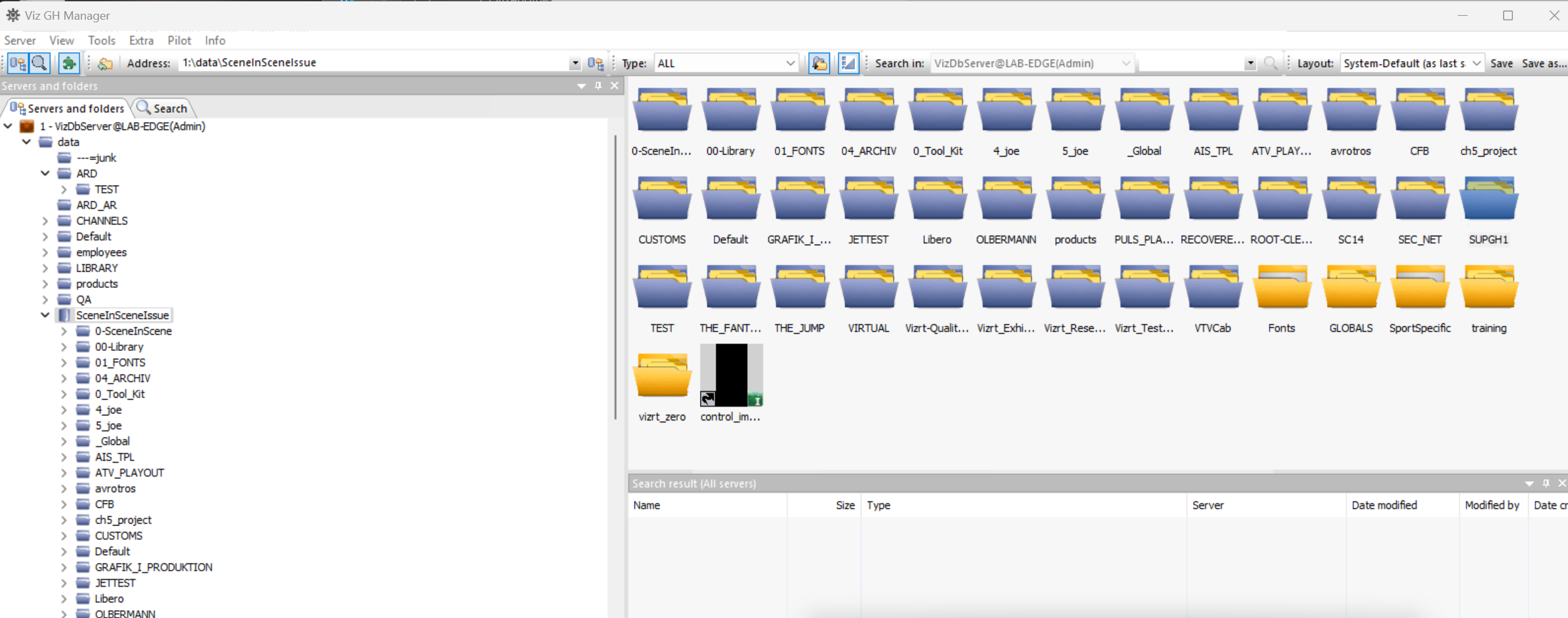

Below the main menu is the Explorer of the Graphic Hub Manager.

The Explorer is automatically updated immediately after changes made to files and/or folders, but a manual refresh of the Explorer is sometimes necessary, for example after re-enabling columns. To refresh the Explorer, select View > Refresh Explorer or press F5.

This page contains information on the following topics:

Explorer Columns

When server files are shown in the Explorer view, columns are used to show information about the files.

There are two mandatory columns, Name and UUID (these can be hidden if required), and then additional columns which can be added or removed as required. Each column can be moved to a new position as required.

Column customization works for:

• Explorer

• Search results

• Journal

• Server differences

• Scheduled tasks

• Action Logs

• Running tasks

• Finished tasks

Column Headings

• Name: Shows the name of the file.

• Size: Shows the size of the file.

• Type: Shows the file type, for example material.

• Date Modified: Shows the date and time when the file was modified the last time.

• Modified by: Shows the name of the user that modified the file the last time.

• Date Created: Shows the date and time when the file was created.

• Owner: Shows the name of the user that owns the file.

• Checked out by: Shows the name of the user that has checked it out, if the file is checked out.

• Locked by: Shows the name of the user that is working on it, if the file is session locked.

• Access rights (U/G/W): Shows the access rights for user, group, and world (see User and Group Management).

• Folder links: Shows the number of folder-links (number of folders the file is placed in).

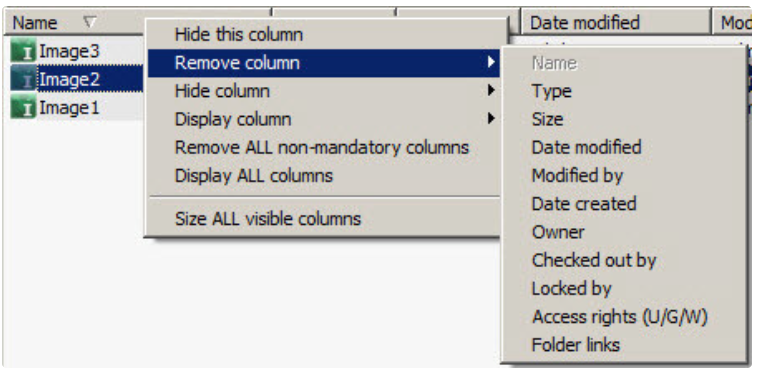

To Hide, View, Remove or Add Columns

1. Right-click on the column bar.




2. Add, remove, hide or show columns, as required. To customize the column order, drag the column to the required location.

Explorer Icons

The following icons are used in the Explorer:

Tool Bar

At the top of the Explorer is the Tool Bar.

Main

• Show Servers and folders: Show/hide the Servers and Folders, or click View > Servers and Folders.

• Show search: Show/hide the Preferences.

• Show add-ons: Show/hide the Add-ons Panel.

Servers and Folders

• One level up: Jump one level up in the Servers and Folders tree structure.

• Address: Shows the current folder path.

From the drop-down list, it is possible to see the history of all folders that have been used within this session. To re-open to one of these folders, select it from the list. The format in which the history is shown is <ServerNumber>:\data\<path>.  The history of a server that has been disconnected is no longer available.

Folders and Files

• Type: Filter file types. Click the arrow to the right to toggle between the options.

• Show/Hide project and folders: If enabled, the subprojects/sub-folders of the selected folder show in the Explorer list.

• Display icons/Details: Toggles between showing files in the Explorer with details or as icons.

Quick Search

• Search in: Graphic Hub Quick search function. Select a server to search in, enter a search string and press ENTER or click on  to start a Free text search on the selected server.

Layout

• Layout: Loads a saved layout. Options:

  • System Clean (Locked): (Basic standard layout)

  • System Default: (as last saved (default layout)

• Save: Saves the current layout.

• Save as...: Saves as a new layout.

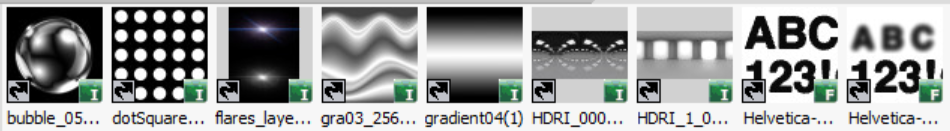

Display Files as Icons

By default, the files in the Explorer are presented with detailed information. To view the files as icons, toggle the

 (As Icons) button in the Tool Bar.

When files are viewed as icons, in the lower right corner of the icon characters show the file type:

Additional information may also be shown on the icon:

See Also

• Graphic Hub Manager Customization
