The following systems are described:

Configuring Lighting Control

To configure lighting

1. Navigate to AV Automation > Devices > Properties > Light Control tab.

2. Check the Light Control checkbox to enable one of the devices.

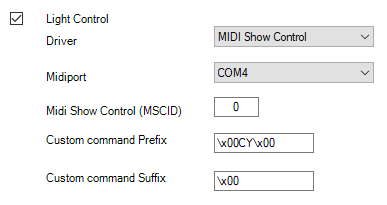

MIDI Show Control

• Midiport: System MIDI port to communicate with the light board.

• Midi Show Control (MSCID): The MIDI Show Control ID used for communicating with the light board.
  Default: 0.

• Custom command Prefix: The prefix test sent with the MIDI Show Control command. Characters can be escaped using the x00 where 00 is replaced by the numeric value of the character.
  Default: \x00CY\x00.

• Custom command Suffix: The suffix sent with the MIDI Show Control command. Characters can be escaped using the x00, where 00 is replaced by the numeric value of the character.
  Default: \x00.

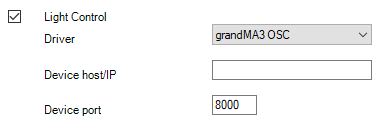

grandMA3 OSC

• Device host/IP: Host name or IP address of the console.

• Device port: The port number that grandMA3 uses to receive OSC messages.

In a simple setup, one OSC In&Out configuration should be created on grandMA3 that enables receiving commands from Viz Mosart.

For redundant Mosart Server setups, it is possible to create two OSC In&Out configurations on the device, matching IP addresses to main and backup.

Viz Mosart supports OSC 1.0 via TCP.

ETC Eos Family OSC

• Device host/IP: Host name or IP address of the console.

• Device port: The port number specified on the device for receiving OSC messages.

Enable OSC connection on the device under System/Show Control (in version 3.3).

Viz Mosart supports OSC 1.0 via TCP.
