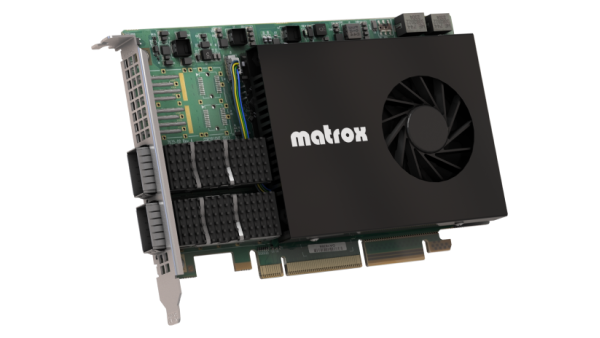

The Matrox DSX LE6 video board is the next generation IP card supporting SMPTE ST 2110-20/30/40 protocols. It is equipped with two (one dual) QSFP28 cages in which to connect QSFP28 transceivers. Only 100GbE transceivers are supported.


Key Features

  • Native SMPTE ST 2110 supports over 100 GbE with no CPU usage.

  • Up to eight UHDp60/50 inputs and outputs over 100GbE.

  • ST 2110-21 packet pacing in hardware for narrow senders (Type N).

  • Wide asynchronous receivers (Type A).

  • 16x HD inputs and outputs over 100GbE.

  • 128 audio flows from one to 64 tracks.

  • Integrated hardware PTP for ST 2059-2.

  • Built in NMOS IS-04 and IS-05 support.

  • UHD-2 support will come with future Matrox driver versions.

General Notes

  • Please be aware that a DSX LE6 uses a 16x PCIe slot. It cannot use the same slot as an X.mio3.

  • To make sure the PTP is stable, all Power Management options in Windows and BIOS need to be disabled (Runtime power management disabled in BIOS settings).

  • Each SFP of a DSX LE6 board requires two IP addresses. This is mandatory.

  • NTSC and PAL resolutions are not supported by the SMPTE ST 2110 standard.
