This section details how to create, assign and work with Web Channel media assets.


Render Layers

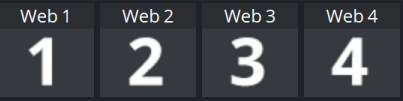

Web Channels allow a designer to use up to eight HTML-based render layers. They can be used either as Texture or as DVE effect.


Requirements

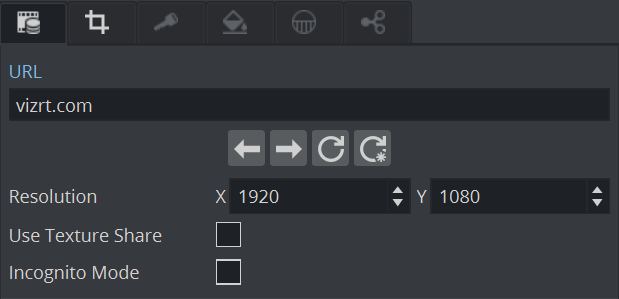

Web Channels only require a valid URL. Once entered, the webpage is rendered and can be interactively used.

Note: The rendering of web content is synchronized with Viz Engine output refresh rate.

Blending

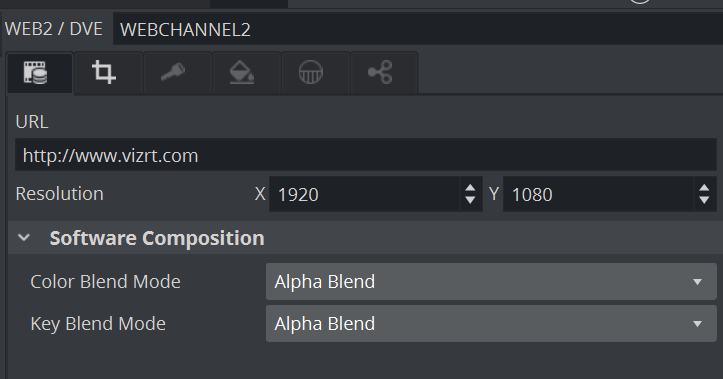

If you want to blend your webpage against any background in DVE mode, make sure your are using the following order:


Info: Keyboard/mouse interaction is supported only in DVE mode.

Audio

Audio from Webpages is supported and mixed into Viz Engine Audio system. The Volume of Web Channels can be controlled in the Media Asset Transformation Tab.
