WIBU-based Licensing System

This chapter describes management and usage of the new licensing system based on CodeMeter from WIBU Systems available in Viz Virtual Studio 1.1.1 and later. It replaces the previous VALID/Sentinel/Hardlock Dongle licensing system and allows Viz Virtual Studio to be used without a physical dongle on each machine by allocating licenses from a license server on the network.

The support for the old VALID/Sentinel/Hardlock Dongle was removed.

In this section, you find the following information:

Important Pre-installation Information

The WIBU licensing system requires the installation of the CodeMeter Runtime Software (included in the Bundle installer).

When the license should be retrieved from a dedicated license server, it must configured in the VizrtLicensing Service (see the Installation section of the Viz Licensing Administrator Guide) or the CodeMeter WebAdmin.

Please refer to the Viz Licensing Administrator Guide for further detailed information.

  • There is an auto discovery if no license server is configured in the server search list of CodeMeter.

  • On network disconnect and reconnect, it may happen that a license is checked out twice. In this case, it must be released manually on the CodeMeter service on the license server or the license server can be restarted.

Key Features and Workflow of the New Licensing System

  • Dongle-less operation on the clients with monitoring and logging capabilities.

  • Grace periods for allocated licenses to avoid immediate expiration on short network interruptions.

  • Configurable WIBU license container location (local, network).

Notable Limitations and Known Issues

  • Only one license system can be used.

  • Uninstall any CodeMeter Runtime prior. And afterwards install the Virtual Studio and the newer CodeMeter Runtime.

Basic Setup

These are the steps to set up Viz Virtual Studio licensing with WIBU:

  1. Install Viz Virtual Studio with the bundle installer. Configure CodeMeter with the VizrtLicensing Service or the CodeMeter WebAdmin (can be opened from the CodeMeter Control Center).

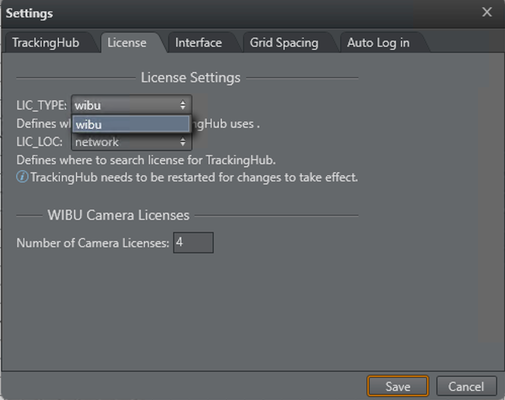

  2. Configure the license system in Viz StudioManager.

    images/download/attachments/114325481/image2023-1-27_17-3-5.png
    images/download/attachments/114325481/image-2023-11-2_11-7-22.png

    1. When using a WIBU license server:

      1. Open the CodeMeter WebAdmin and add the license server to the server search list.

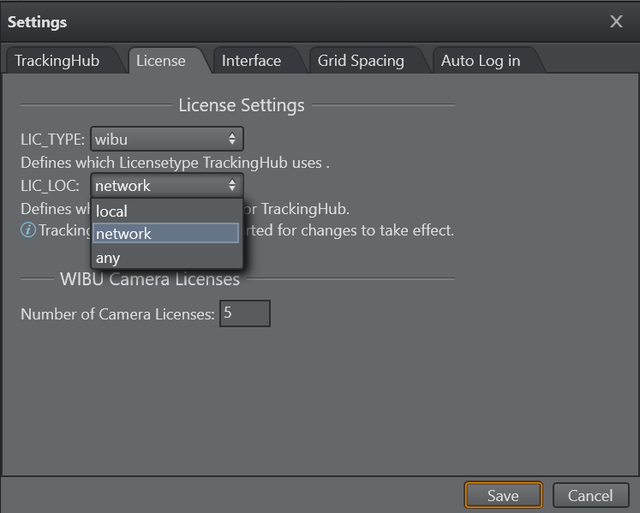

      2. Configure Studio Manger LIC_LOC to network or network or any.

    2. When using a WIBU dongle:

      1. Attach the WIBU dongle to any USB port of the machine.

      2. Configure to use legacy licensing. In the Studio Manager under Tools Settings, select License. Set LIC_LOC to local.

  3. Click Save and restart.License Information

Information about the license can be found in the Studio Manager under Info License ....
