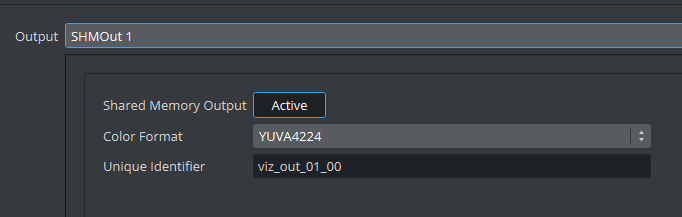

Configure Shared Memory Output channels from this panel. The shared memory output is only available on systems with no video boards, or if Check Video Card is set to None in the Video Board section.

• Shared Memory Output: Sets the output mode for Shared Memory. Options are Active or Inactive.

• Color Format: The format the Shared memory texture is using: can be YUVA4224 or RGBA.

• Unique Identifier: Changes the name of the Shared Memory if required. Used when connecting to services such as Viz Coder.
