1. Uninstall any previously installed Viz Arc versions.

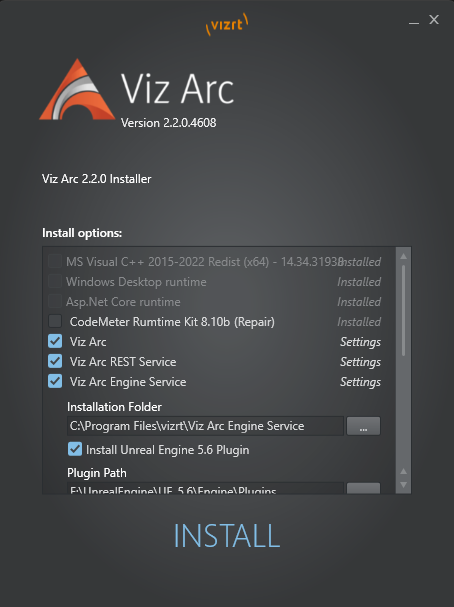

  2. Select the parts you want to install on the target machine:

    1. Viz Arc, the main application.

    2. Viz Arc REST Service, required when Viz Arc actions shall be called from Viz Pilot, Pilot Edge or the MOS integration.

    3. Viz Arc Engine Service, required on machines running an Unreal Engine which are controlled by Viz Arc. This installer contains the Viz Arc communication plugins for the Unreal Engine which can be found in C:\ProgramData\vizrt\VizArc\Resources\unreal after installation. When the installer detects an existing Unreal installation it offers the automatic deployment of the plug-in when the respective checkbox is selected.


Note: After installation, you must first configure your system, and request and apply the license to use all of the software features.

Warning: Installing Viz Arc 2.2.0 over previous installed versions, might lead to unexpected and erratic behavior. Uninstall any previously installed version.
